Description

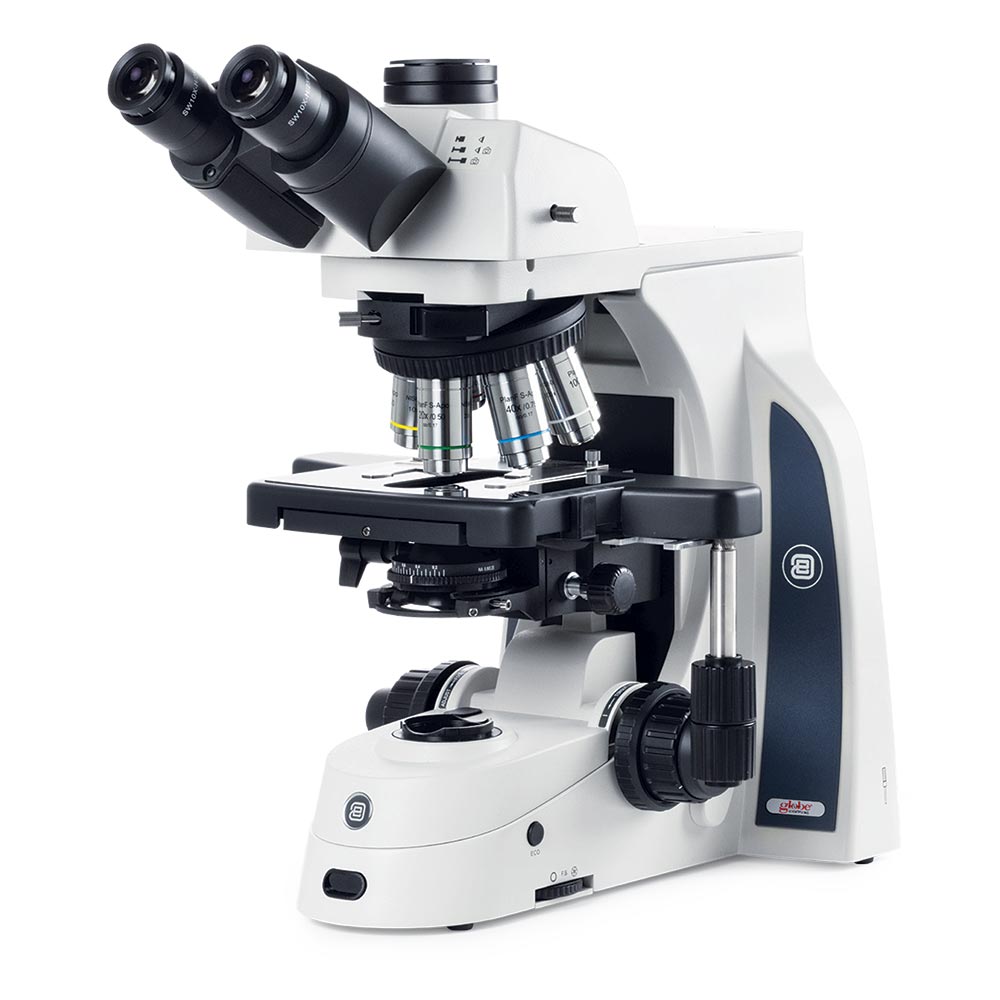

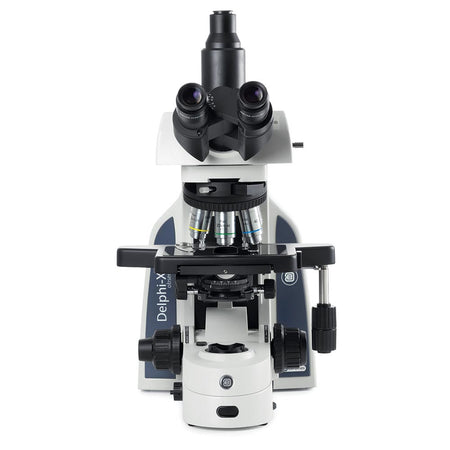

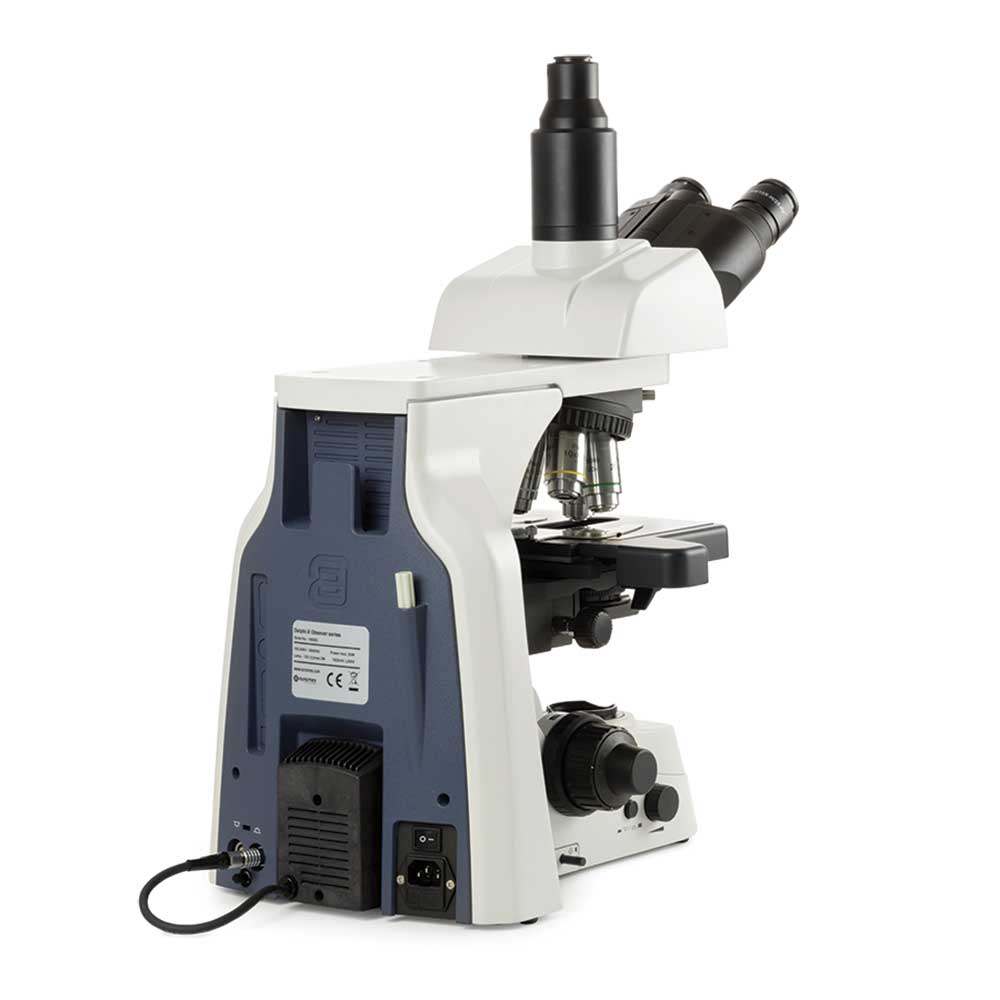

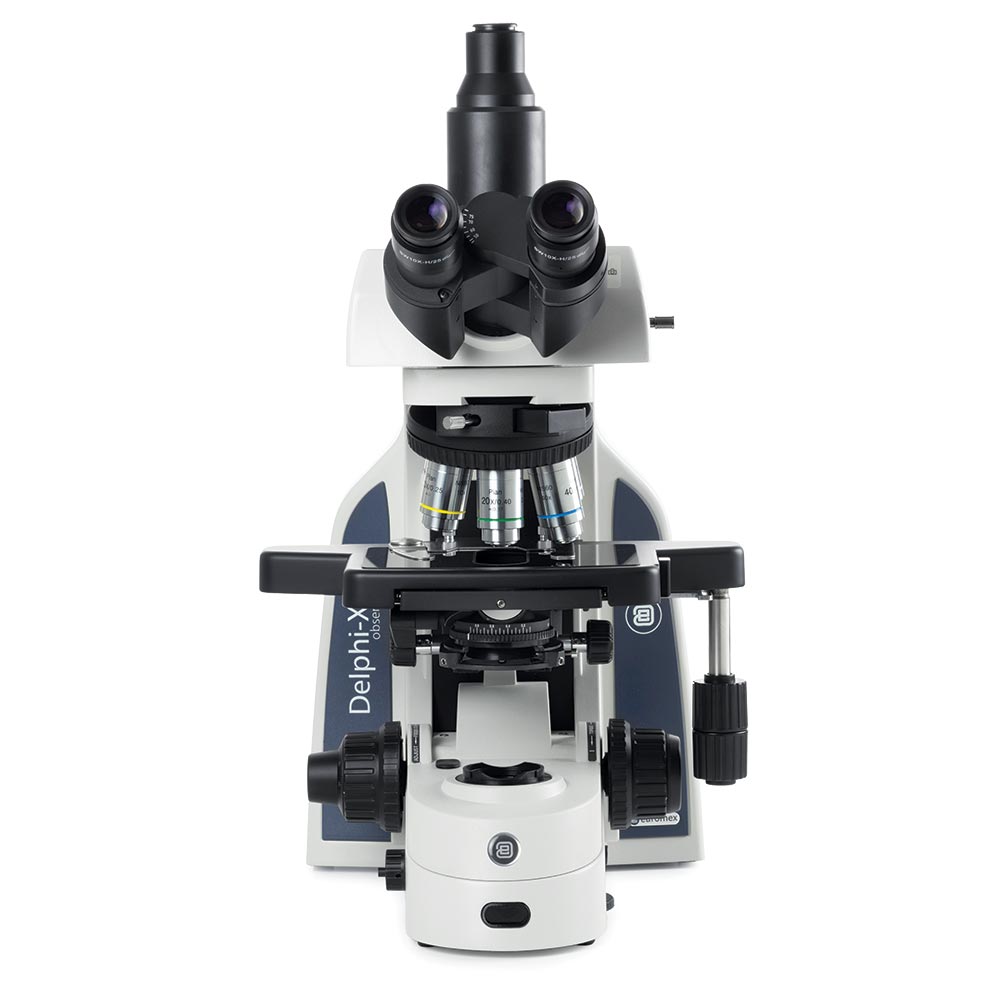

The Delphi-X Observer Compound Microscope is a premium, research-grade trinocular microscope engineered for advanced life science, pathology, and clinical laboratory applications. Designed with Euromex Enhanced Infinity System (EIS) optics and distributed by Globe Scientific, this microscope delivers exceptional image clarity, superior color rendering, and outstanding resolving power across a 25mm super wide field of view.
Built with 60mm parfocal Plan EIS infinity-corrected objectives and a 200mm focal length tube lens, the Delphi-X Observer significantly improves chromatic aberration correction and contrast. The larger diameter objective system allows for higher numerical apertures, producing sharper, brighter, and more detailed images even at high magnifications.
The scratch-resistant Gorilla Glass stage, precision coaxial focusing (1µm accuracy), and Köhler 3W NeoLED™ illumination system ensure consistent, high-resolution performance for demanding diagnostic and research workflows. The integrated iCare energy-saving sensor automatically powers down illumination when not in use, reducing energy waste and extending system life.
Ideal for medical laboratories, universities, hospitals, and research facilities, the Delphi-X Observer supports optional phase contrast, DIC (Differential Interference Contrast), ergonomic tilting heads, and even multi-head teaching configurations for simultaneous viewing.
If you need uncompromising optical performance, long-term durability, and professional-grade precision the Delphi-X Observer is the solution.
Features
-
Trinocular Siedentopf head with 100:0 / 80:20 / 0:100 light path selector
-
Super Wide Field SWF 10x/25mm eyepieces (25mm field of view)
-
Enhanced Infinity System (EIS) optics
-
60mm parfocal Plan Achromatic EIS objectives
-
Sextuple reversed nosepiece with M25 mounting & DIC slot
-
3W NeoLED™ Köhler illumination with push-in/out neutral density filter
-
Scratch-resistant Gorilla Glass mechanical stage (190 x 152mm)
-
Precision coaxial coarse & fine focus (1µm increments)
-
Height adjustable Abbe N.A. 0.90/1.25 swing-out condenser
-
iCare energy-saving automatic shut-off sensor
-
Optional Phase Contrast & DIC capability
-
Multi-head and face-to-face teaching configurations available
-
10-Year Manufacturer Warranty
-
CE Certified
Specifications
Technical Data Sheet-TDS-EDX-1053-PLI
| Model | Delphi-X Observer (Trinocular Compound Microscope) |
|---|---|
| Head | Siedentopf trinocular, 30° inclined tubes; interpupillary 47–78mm; optical path selector (100:0 / 80:20 / 0:100); diopter adjustment on both eyepieces |
| Eyepieces | Super Wide Field SWF 10x/25mm, Ø30mm tubes (EWF 10x/22mm optional) |
| Optical System | Enhanced Infinity System (EIS) with 200mm focal length tube lens; optimized chromatic aberration correction and contrast; high NA objective system |
| Nosepiece | Sextuple reversed nosepiece on ball bearings; M25 objective thread; slot for optional DIC prism(s) |
| Objectives (Included) | Plan Achromatic infinity corrected EIS objectives (60mm parfocal): 4x/0.10, 10x/0.25, 20x/0.40, S40x/0.65 (oil immersion listed for S40x in catalog) |
| Optional Objectives | Plan Phase EIS objectives for phase contrast: 10x/0.25, 20x/0.40, S40x/0.65, S100x/1.25 (oil immersion) |
| Stage | 190 × 152mm stage with integrated right-handed mechanical stage (X-Y 78 × 32mm); designed for two standard 25 × 75mm slides; scratch-resistant Gorilla Glass |
| Condenser | Height adjustable Abbe swing-out condenser, N.A. 0.90/1.25 with iris diaphragm and NA identification marks |

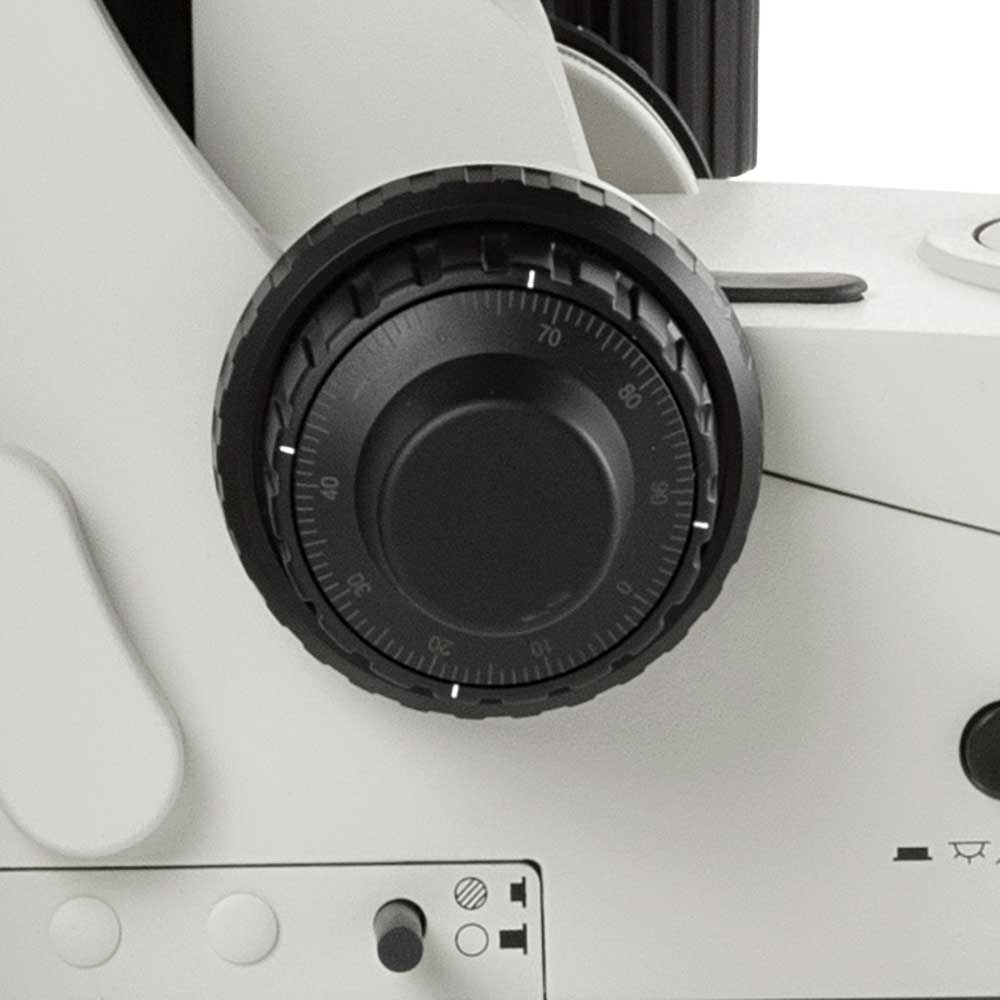

| Focusing | Coaxial coarse & fine; 100 graduations; 1µm precision; 100µm per rotation; approx. 35mm total travel; adjustable rack stop; friction control; focus knobs can be switched left/right |
| Illumination | Diascopic intensity adjustable 3W NeoLED™ Köhler illumination; internal 100–240VAC power supply; push-in/out neutral density filter |

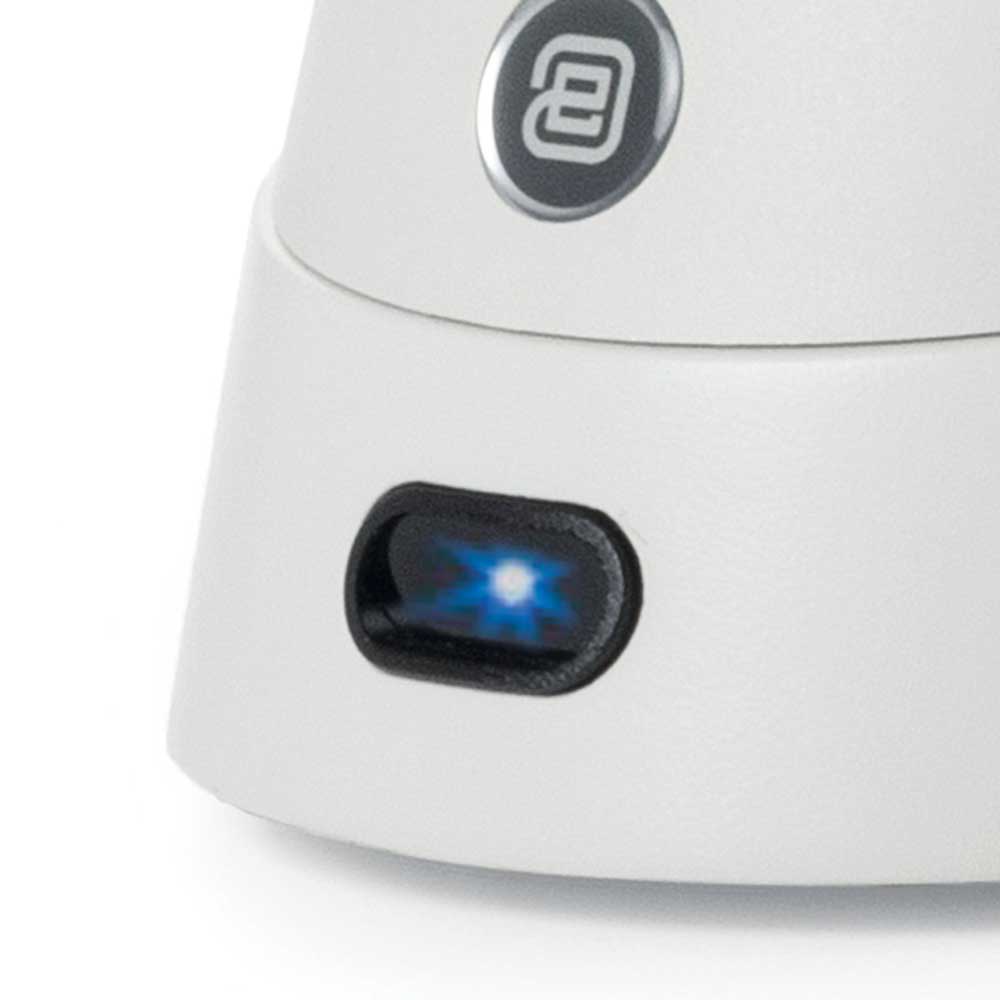

| Energy Saving | iCare sensor automatically switches off illumination shortly after user steps away |
| Ergonomics & Build | Integrated carrying grip + built-in tool holder |
| Package Contents | Power cords, dust cover, spare fuse, user manual, 5mL immersion oil; packed in polystyrene box |
| Certifications | CE Certified |
| Warranty | 10-Year Warranty |
-
